TeraSmart
Compact Industry-Proven Terahertz Spectrometer
Specifications
Advanced Features and Benefits
- All-Integrated Turnkey System
- Compact 19” Rack Solution
- Industry-Proven Delay Unit
- Industry-Proven fs Fiber Laser
- figure 9® Mode Locking
- Multi-Channel Option
- All-Fiber Flexibility
- Ethernet Based Remote Control Engine
- Class 1 Laser Product
| TeraSmart | |
|---|---|
| THz specifications | |
| Spectral range | >6 THz* Bandwidth |
| Dynamic range | > 100 dB (Up to 110 dB*) |
| Average Power | Up to 300 μW* |
| Total scan range | >850 ps, flexible scan range and speed, customizable THz path length >3 m |
| THz frequency resolution | <1.2 GHz |
| Antenna model | TERA15-HP/TERA15-FC |
| Laser specifications | |
| Auxiliary optical output port | Up to 2 fiber-coupled ports, 1560 nm, FC/APC, PM fiber (780 nm port on request) |
| Laser system repetition rate | 100 MHz |
| Dimensions / weight | |
| Enclosure | 19" x 3U (448 x 132 x 495 mm³) / 18 kg |
| Optics, Monitor and Accesories | 12 kg |
*Note: values with asterisk are the specs for systems with high power emitter
Description

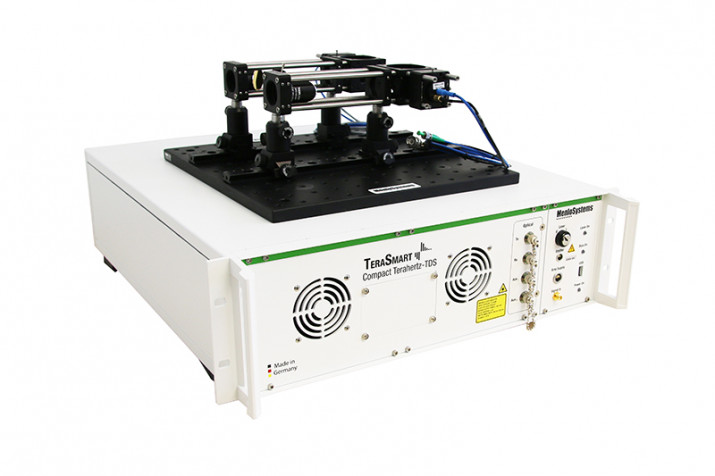

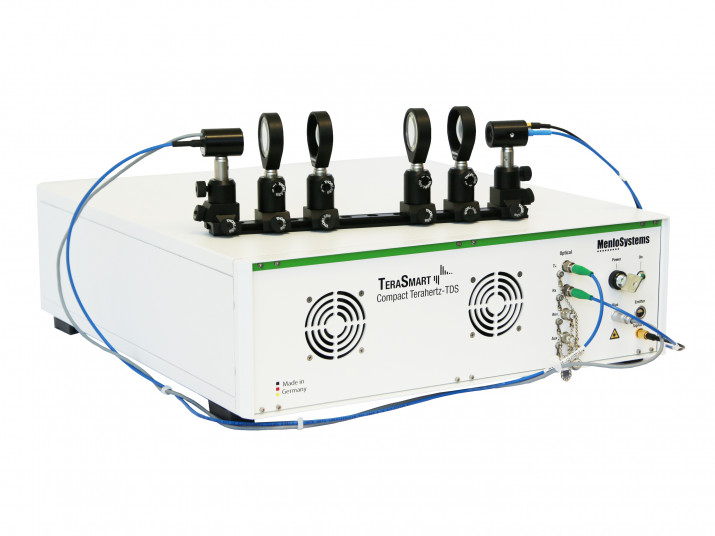

Introducing our new generation TeraSmart Systems with unparalleled performance
The TeraSmart, an established broadband terahertz spectrometer recognized for its compact design and reliability, has undergone remarkable advancements, setting a new standard for industrial performance.
The integration of our new groundbreaking TERA15 antenna modules with high-power capabilities has advanced the system’s already impressive performance to a new level, establishing it as a market leader in terms of THz power, dynamic range, bandwidth, flexibility, and customization. In addition to its user-friendly turnkey functionality, TeraSmart utilizes Menlo Systems’ cutting-edge fiber-based femtosecond laser sources with our proprietary figure 9® mode locking technology. The modular design, incorporating the ELMO OEM laser platform, enhances adaptability, enabling tailored configurations for seamless integration into both industrial and academic environments. Multichannel setups are possible, allowing for simultaneous measurements using multiple emitter/ detector pairs, all powered by a single femtosecond fiber laser oscillator. The incorporation of an intelligent TCP socket interface enables remote control, advantageous for non-destructive testing of hazardous samples, and smooth integration into manufacturing lines.
TeraSmart is a compact, turnkey, and integratable terahertz spectrometer designed for continuous 24/7 operation. Additionally, the high levels of attainable THz power expand the potential applications of THz spectroscopy and imaging, making previously unexplored and challenging applications (e.g., analysis of highly absorbing, thick, and biological samples with high water content) in the terahertz region more accessible than ever before. Furthermore, users of existing THz systems can seamlessly upgrade to the new high-power antennas.
Options
-
THz Purge Box Extension Unit
Product Code: THz Purge Box
Compact purge box for our THz mirror systems for improved, water line free Terahertz spectroscopy.
Download PDF: Infosheet THz Purgebox
-
TERA Image Extension Unit
Product Code: TERA Image
For THz imaging applications our fully automated extension TERA Image can be integrated.
-
ImageLab: Extended Edition THz Image Analysis
Product Code: ImageLab
Hyperspectral Image Processing Software for THz Imaging Data
-
Plug-in Terahertz Reflection Head Add-on for flexible THz measurement geometry
Product Code: Reflection Head
Plug-in THz reflection head with integrated parabolic mirror THz optics. Compatible with Menlo Systems' fiber-coupled THz antennas TERA15-TX-FC (Emitter) and TERA15-RX-FC (Receiver).
Download PDF: Infosheet THz Reflection Head
-
Reflection Guide Add-on for flexible THz measurement geometry
Product Code: Reflection Guide
THz path pivot platform for quick and flexible manual adjustment of the reflection angle, ranging from a minimal reflection angle of 38° to normal up to a stretched configuration for measurements in transmission geometry. A scale for measurement angle indication is included. The platform assures angle adjustment of the sample holder.

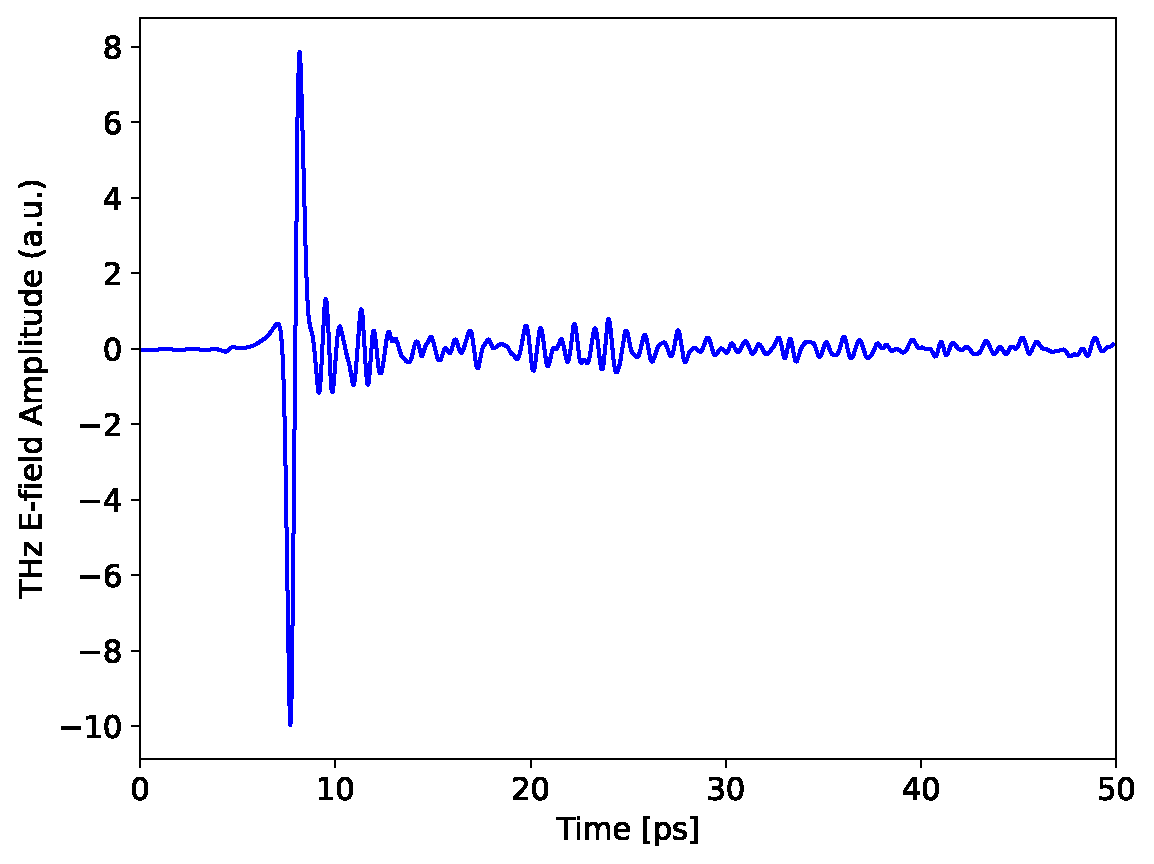

Time domain data: TERA15-TX-FC

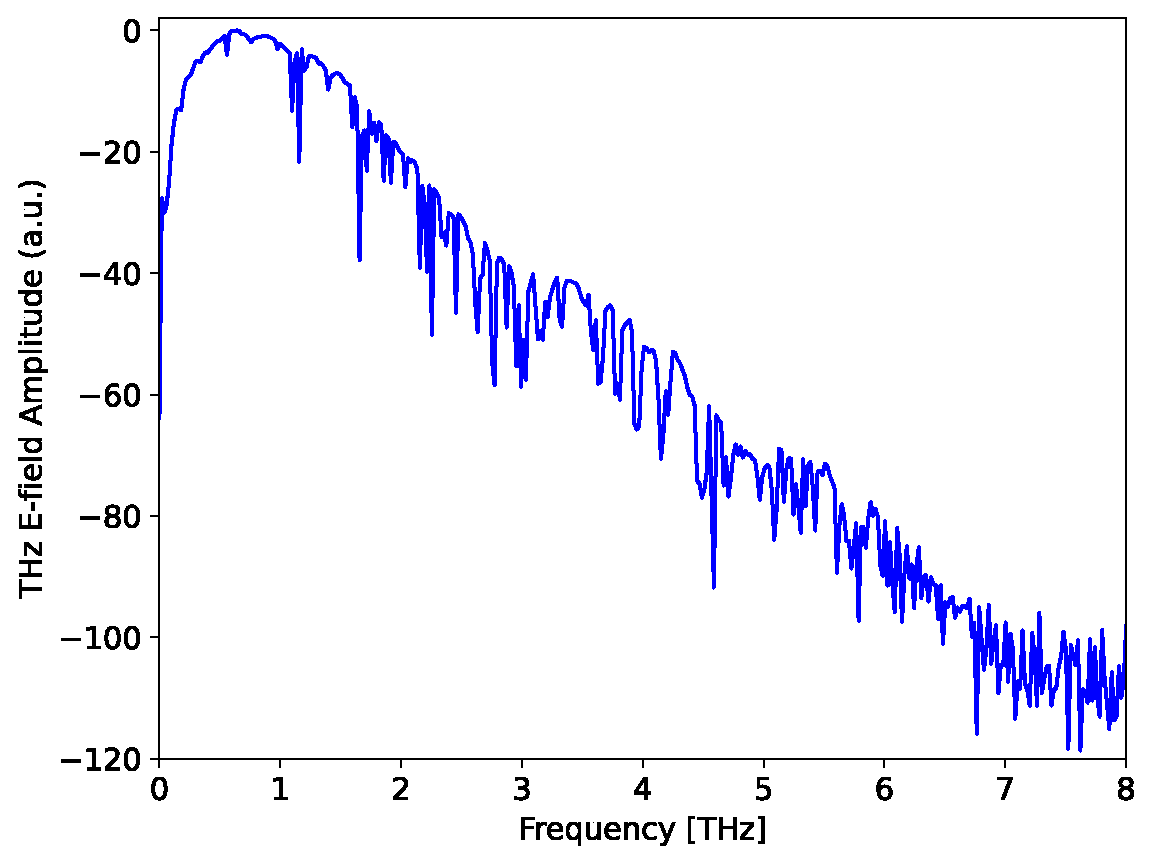

Frequency domain data: TERA15-TX-FC
New! Comparison of our emitters
- TERA15-TX-FC measurement settings: 100 V bias with 25 mW optical powers at 24 Hz scan speed to achieve >6 THz and >95 dB in 60 sec
- TERA15-HP-TX measurement settings: 200 V bias with 50 mW optical powers at 24 Hz scan speed to achieve >6 THz * and up to 110 dB in 60 sec
- All measurements were conducted under ambient conditions without purging Frequency domain data: TERA15-TX-FC
Applications
Application Notes
- SCIENTIFIC PUBLICATION: Light-driven nanoscale vectorial currents
- Detecting Hazardous Fluids
- Mapping the Formation of Paper Products
- Non-Destructive Testing of Plastic Compound Materials
- Orientation of Fibers in Polymers
- Quality Control of Chocolate Products with THz Imaging
- Quality Control of Plastic Joints with THz Imaging
- SCIENTIFIC PUBLICATION: All polarization‑maintaining fiber laser architecture for robust femtosecond pulse generation
- Investigating Ceramic Coatings with THz Imaging
-
