ELMO 780 XHP
Femtosecond Erbium Laser

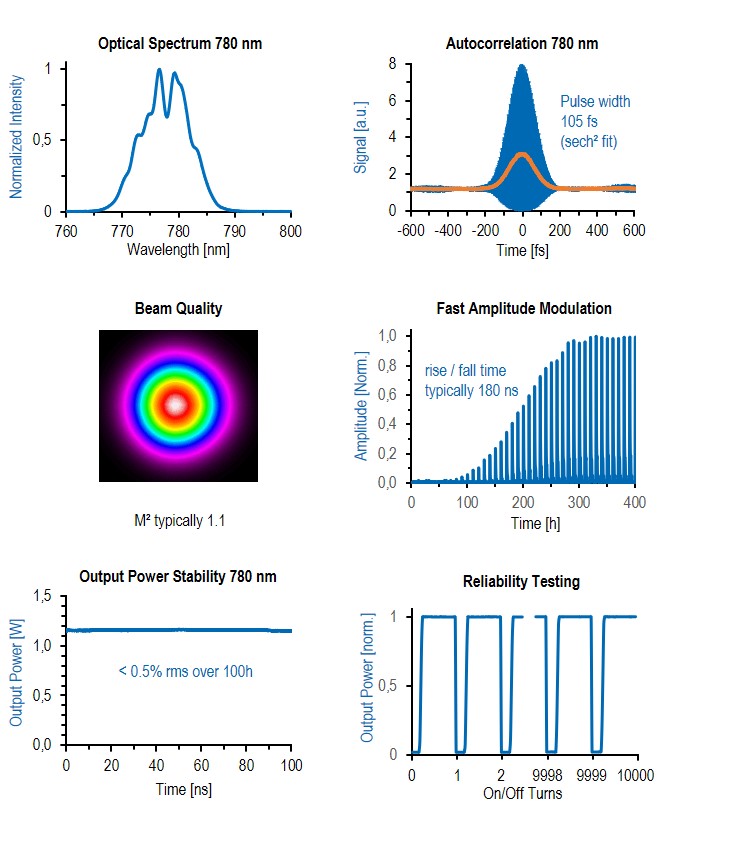

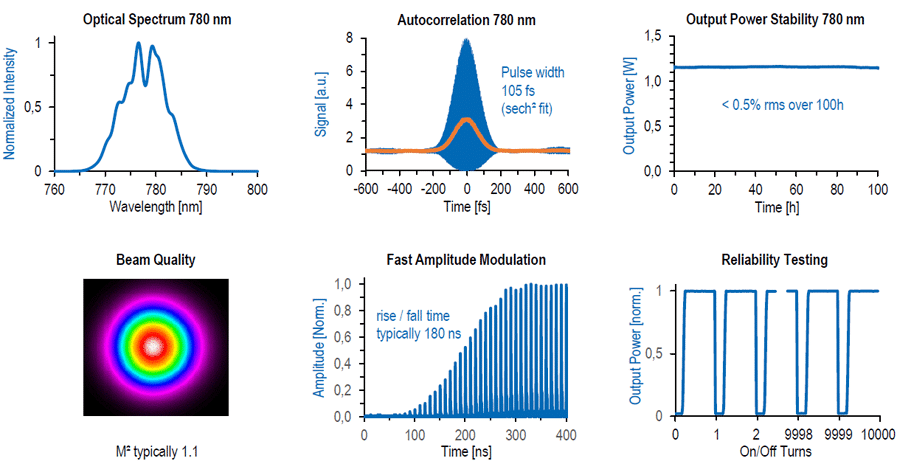

Specifications

Advanced Features and Benefits

Output power >1 W at 780 nm
Pulse width <150 fs at 780 nm
Integrated fast amplitude modulation
Integrated dispersion precompensation up to -30.000 fs²
Optional output port delivering >1 W at 1560 nm

Model	ELMO 780 XHP
Contained Modules*	19“ control unit, compact laser head
Output characteristics 780 nm
Central Wavelength	780 nm ± 10 nm
Average Power	>1 W (typ. 1.2 W)
Pulse Width	<150 fs (typ. 120 fs)
Repetition Rate	100 MHz ± 1 MHz
Output Port	free space
Beam Quality	M² <1.2
Polarization	linear, s-polarized
Dispersion Precompensation	up to -30.000 fs²
Fast Amplitude Modulation**	integrated AOM for fast light modulation
Options
1560 nm Output Port	free space, >1 W
Multiple Output Ports	please inquire for additional oscillator/amplifier output ports

*Control unit and laser head permanently interconnected by umbilical cord.
**Analog input 0 - 5 V, rise-/fall-time <300 ns (typ. 180 ns)

Description

The most recent high power extension of our industry-proven ELMO series: ELMO 780 XHP delivers up to 1.5 W of average output power at 780 nm, with pulse durations down to 100 fs. An additional output port providing >1 W at the 1560 nm fundamental is readily available. ELMO 780 XHP comes in an extremely compact design, requiring just a fraction of space occupied by other lasers with comparable performance. Fully integrated fast amplitude modulation and dispersion precompensation make ELMO 780 XHP a perfect fit for multi-photon applications in microscopy or 3D nanoprinting.
